In the past large band resaws were installed with a pit in the floor to accommodate the bottom pulley and extraction. The modern Stenner ST range of resaws do not require a pit for installation which in turn provide an added advantage of efficient waste extraction.
The full range are equipped with pneumatic saw strain, high precision factory set guides, and are of modern design and construction to meet the heavy duty demands of today’s sawmills and large joinery companies.

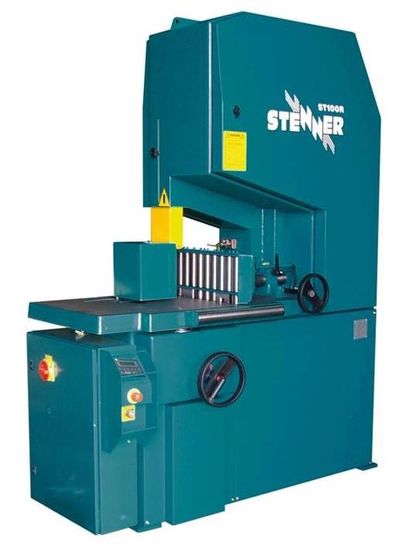

Stenner ST-100R Band Resaw with pulleys 915 mm (36") dia, running in an anti clockwise direction to carry a 100mm (4") wide sawblade.
Electronic Operator Interface with digital readout of fence position.
Pneumatic saw straining.
Infinitely variable feed speeds 5 - 60 mtrs/min.
Pneumatic movement of the feed rollers activated by photocell.
The variable speed control, an emergency stop button and the isolator are situated on the infeed side and there is an additional emergency stop button positioned on the out feed side of the machine.
The main door is fitted with an electrical interlock to inhibit starting while open.
Free running horizontal table rollers at infeed and out-feed.
Foot Pedal override of Pneumatic Movement of Radial Arm
Bandsaw Pulley (dia): 915 mm
Bandsaw Thickness:
Bandsaw Width: Max: 100 mm
Depth of Cut: Max: 400 mm
Roller Fence to Saw Line: Max: 300 mm
Feed Rolls to Saw Line: Max: 230 mm
Feed Speeds (variable): 5 - 60 m/min
Main Motor: 15 kW
Working Height: 955 mm
Dust Extraction Outlet (dia): 150 mm
Size of Machine:
A specialist high-strain, low kerf resaw that is ideal for accurate sawing of high quality products from valuable timbers for applications such as musical instruments and fine furniture, featuring a pneumatic radial arm with photocell activation, 203mm polyurethane feed rollers, manual (screw jack) tilting chrome fence and table rollers as standard as well as the HMI controller (programming of saw blade and feed speed and indicating fence position).
ST130 - combines the performance of a 130mm wide bandsaw with the convenience of 'no pit' installation, for producing quality sawn timber from the largest cross-sections, incorporating a soft-touch digital key pad and feed control located in a remote pedestal.
ST150 - invaluable as a general purpose resaw in green mills and dry mills and particularly useful for splitting squares and deals into furniture size, with powerful hydraulic feed for fast, accurate cutting of any timber section within its large capacity range.
Specifically designed to meet the needs of timber merchants, planing mills and sawmills where relatively small sections of timber require one or two saw cuts, with full width horizontal rollers at in-feed and out-feed, fence dial with enlarged scale, and a fully flexible radial arm that is pneumatically operated and cushioned and quickly controlled.
A general purpose machine with powerful hydraulic feed, suitable for high production resawing in planing mills and sawmills where one or two saw cuts are required, with horizontal rollers synchronised with the vertical feed rolls, deep robust fence with sealed bearing rollers for smooth timber flow, fence dial with enlarged scale and hydraulically-operated radial arm giving constant pressure on unsawn surfaces.
A robust, powerful sawmill machine designed particularly for the conversion of slabs and cants into finished product, helping to substantially increase output and achieve high timber recovery rates, with remachinable pressure sawguides as standard, horizontal rollers synchronised with the vertical feed rolls, deep robust fence with sealed bearing rollers, fence dial with enlarged scale and hydraulically-operated radial arm giving constant pressure on unsawn surfaces.
